二次多项式曲面公式
总共有6个系数。
绘制曲面图形时，一般给定x和y的取值（一维数组），然后对x和y网格化成二维数组X和Y，将X和Y代入公式，即可得到曲面的数值，最后用surf函数显示。
实例
给定一个二次多项式模型，然后成图

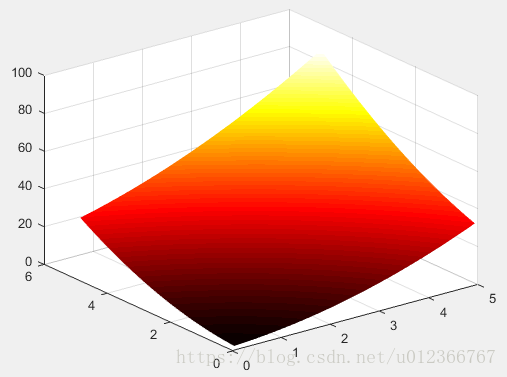

x = 0.1 : 0.1 : 5; y = 0.1 : 0.1 : 5; [X, Y] = meshgrid(x, y); Z = X.^2 + Y.^2 + X.*Y + X + Y + 1; surf(x, y, Z); colormap hot shading interp
添加噪声，随机选择 100 个点用于拟合
rng('default');

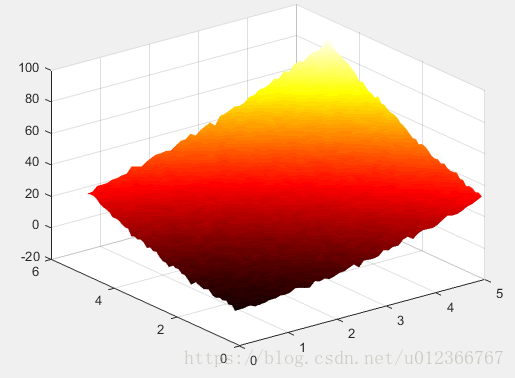

Zn = awgn(Z, 30, 'measured');
xfit = randi(50, 100, 1) / 10;
yfit = randi(50, 100, 1) / 10;
zfit = zeros(100, 1);
for i = 1 : 100
zfit(i) = Zn(xfit(i) * 10, yfit(i) * 10);
end
surf(x, y, Zfit);
colormap hot
shading interp

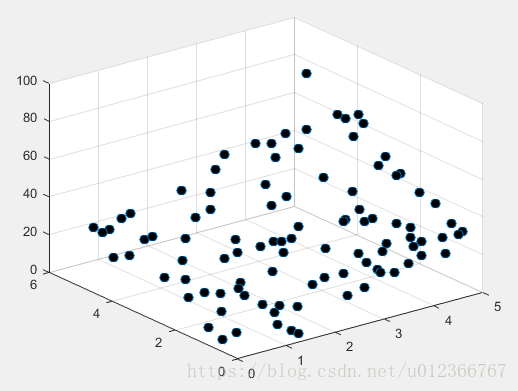

scatter3(xfit, yfit, zfit, 50, 'MarkerFaceColor', [0 0 0]);
用lsqcurvefit函数拟合：拟合结果精度高

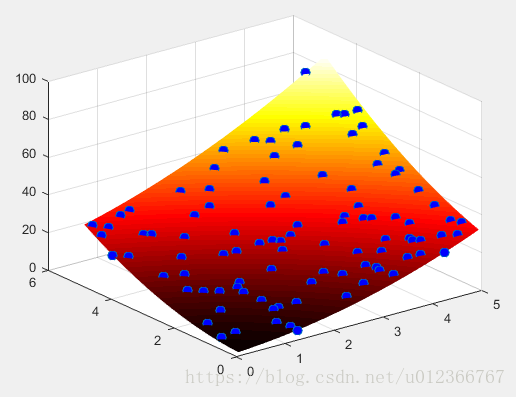

func = @(var,x) var(1)*x(:,1).^2 + var(2)*x(:,2).^2 + var(3)*x(:,1).*x(:,2) + var(4)*x(:,1) + var(5)*x(:,2) + var(6); a = lsqcurvefit(func,ones(1, 6),[xfit, yfit],zfit); Zfit = a(1) * X.^2 + a(2) * Y.^2 + a(3) * X.*Y + a(4) * X + a(5) * Y + a(6); ya = func(a,[xfit, yfit]); surf(x, y, Zfit); colormap hot shading interp hold on surf(x, y, Zfit); shading interp scatter3(xfit, yfit, ya, 50, 'MarkerFaceColor', [0 0 1]); hold off
完整程序
clear;clc;
x = 0.1 : 0.1 : 5;
y = 0.1 : 0.1 : 5;
[X, Y] = meshgrid(x, y);
Z = X.^2 + Y.^2 + X.*Y + X + Y + 1;
rng('default');
Zn = awgn(Z, 30, 'measured');
xfit = randi(50, 100, 1) / 10;
yfit = randi(50, 100, 1) / 10;
zfit = zeros(100, 1);
for i = 1 : 100
zfit(i) = Zn(xfit(i) * 10, yfit(i) * 10);
end
func = @(var,x) var(1)*x(:,1).^2 + var(2)*x(:,2).^2 + var(3)*x(:,1).*x(:,2) + var(4)*x(:,1) + var(5)*x(:,2) + var(6);
a = lsqcurvefit(func,ones(1, 6),[xfit, yfit],zfit);
Zfit = a(1) * X.^2 + a(2) * Y.^2 + a(3) * X.*Y + a(4) * X + a(5) * Y + a(6);
ya = func(a,[xfit, yfit]);
surf(x, y, Zn);
shading interp
freezeColors
hold on
surf(x, y, Zfit);
colormap hot
shading interp
scatter3(xfit, yfit, zfit, 50, 'MarkerFaceColor', [0 0 0]);
scatter3(xfit, yfit, ya, 50, 'MarkerFaceColor', [0 0 1]);

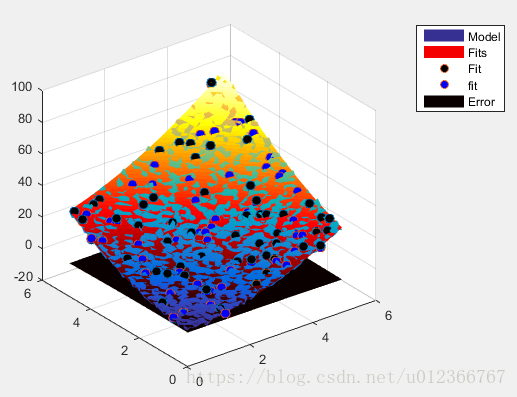

surf(x, y, Z - Zfit);
shading interp
hold off
legend('Model','Fits','Fit','fit','Error');
使用cftool工具拟合
